SHLX-Grid-Connected Box

SHLX-Grid-Connected Box

Combiner Box

• Protection rating IP65 • With short-circuit, over-voltage, under-voltage protection • Automatically closing • Surge protection • Disconnect obliviously,Repair directly in box when repair power issue

Strong Adaptability

Flexible configuration

Description

ADVANTAGES

• Protection rating IP65
• With short-circuit, over-voltage, under-voltage protection
• Automatically closing
• Surge protection
• Disconnect obliviously,Repair directly in box when repair power issue
• With metering installation location to visualize power

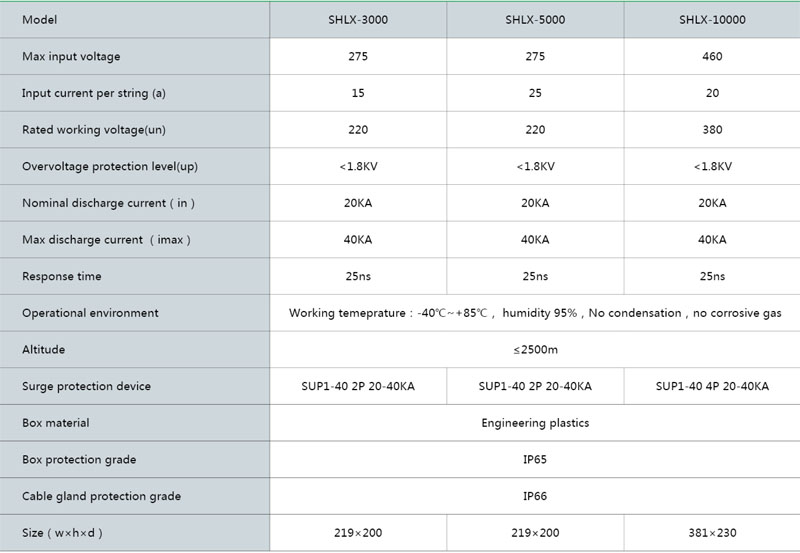

TECHNICAL PARAMETERS

SHLX-Grid-Connected Box

DESCRIPTION
Distributed PV grid distribution box main for distributed PV power system. Connect and protect inverter and grid. Integrate switch components and meters. With cold rolled plate box(waterproof IP65). Inside installed with grid dedicated switch. Function like: over voltage,under voltage, delay action, automatically closing after voltage recovery. Inside surge protection device can protect against lightnig. Knife switch disconnect obliviously when in maintenance. Integrated meter PV distribution box make easy installation functional and satisfy the power requirements.

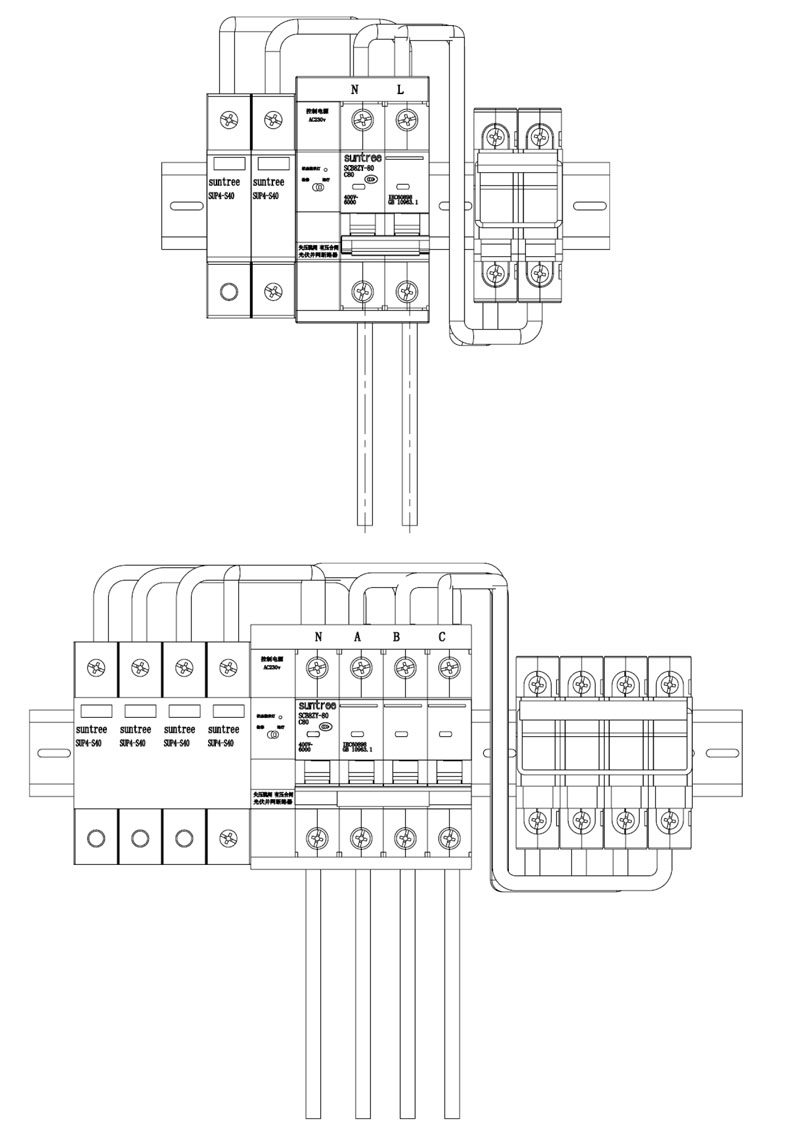

SCHEMATIC DIAGRAM

SHLX-Grid-Connected Box
